INJECTION REGRIND PLASTIC GRANULATING MACHINE
Name: hard flakes pelletizing machine
Raw Material: crushed hard flakes
Usage: recycling rigid plastic
Main Machine: single screw extruder

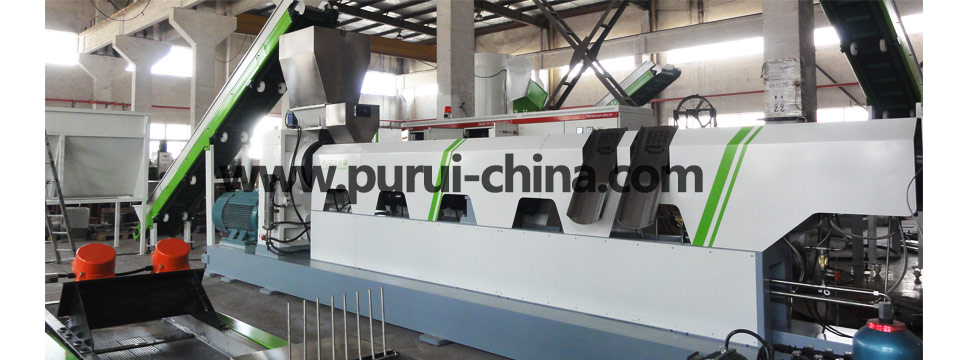

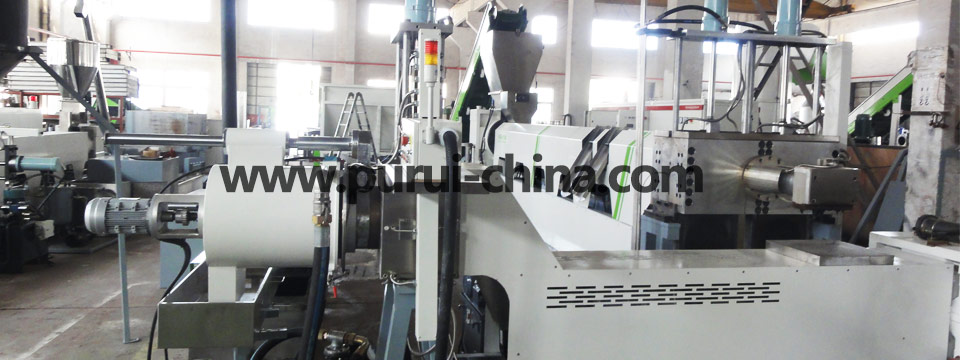

WORKSHOP
DESCRIPTION
FAQ

crushed plastic flakes pelletizing machine.jpg

regrind plastic granulator machine.jpg


rigid flakes granulator.jpg

Rigid flakes granulating machine

Ⅰ.rigid plastic flakes granultor feature:

This Rigid flakes granulating machine is suitable for PVC,PE,PP,ABS,PA and some thermoplastics


Pelletizing method:pull strap pelletizing,water-ring pelletizing,wind-cooling rubs surface pelletizing,and water pelletizing.

good at processing the maetrial of PP,PE,PS,ABS,HDPE,LDPE,OPP etc


Rigid flakes granulating machine Feature:

1. Raw material storage barrel,stable and uniform for material entrance

2. High productivity, easy operation

3. Applicable for wet and lightweight material

4. Below 10% moisture,suitable to extruder

Note:Depending on material property,various downstream equipment are available


If you need to know more about the rigid plastic flakes granultor, please feel free to contact with me!

Ⅱ.rigid plastic flakes granultor list

No.

Name

Qty.

1

spiral charger

1set

2

feeder

1set

3

single screw extruder(one stage or double stage)

1set

4

hydraulic screen changer

1set

5

plastic pelletizing system(water-ring cutting system or strand pulls cutting system)

1set

6

dewatering machine

1set

7

Air transmission and silo storage

1set


Ⅲ.Deatail description for rigid plastic flakes granultor

Material is cut,pre-dried,pre-heated,pre-homogenized and compacted in the shredding drum or squeezed plastics & agglomerated plastic

Less power consumption cost per kilogram,high throughput,reduced floor space occupation and operator attendance

1. Screw charger uploading the material by timer

2. Feeder and extruder is controller by inverter

3. Different L/D for different material

4. Nature degassing, vacuum degassing adopting for moisture

5. Water ring die face cutting for perfect pellets shape


solid plastic chip recycling granulator machine technical parameter


Model

SJ30

SJ45

SJ65

SJ90

SJ100

Screw diameter

(mm)

30

45

65

90

100

L/D

18-42

Rotary speed

(rpm)

10-150

Output

(kg/h)

2-40

10-60

100-150

180-250

250-350



Model

SJ120

SJ150

SJ160

SJ180

SJ200

Screw diameter

(mm)

120

150

160

180

200

L/D

18-42

Rotary speed

(rpm)

10-150

Output

(kg/h)

300-600

400-750

800-1000

1500-2000

2000-3000




FAQ for plastic recycling machine

1. How soon can I get a price quote?

For most projects, once we know the necessary information of the recycled raw material , we can provide you with a price quote within 24 hours.


2. Can I have a custom designed?

We design and construct each project to the individual customer's needs.

Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)


3. Is there a minimum order requirement?

Because of the daily production capacity is very huge and shipping freight, our minimum order quantity is 1set,but we can help to do several color for choice. It is recommended for you to order a 20”GP or 40”HC to reduce the unit price and shipping cost.


4. What are your office hours?

You can reach us between the hours of 8:00 A. M. and 5:00 P. M. GTM+8, Monday thru Saturday , except chinese national hoildays.


5. Do you have a price catalog?

We are a professional plastic recycling machine manufacturer. All of our products are made as in different


6.How do I know I can trust ordering from you?

We have been in business since 2003 and are committed to bringing our customers 100% satisfaction. You can visit them if the customer allow the visit.
